YD-XT-40A LED Linear Light
YD-XT-40A LED Linear Light
Product Model:
YD-XT-40A
Description:
This aluminum led linear lamp is inner built in XT-40 led linear light source. It enjoys high brightness lighting effects by double line led linear light source design. With “H” design of the aluminum profile, it’s convenient for installation and can keep nice shape. In daytime, the led linear lamp can keep excellent and high grade daytime appearance. It can be used as building facade exterior wall outline decoration. The lamp has several designs like static single color, RGB etc. And can create dynamic lighting effects by cooperating with control system.
:Characteristic
Specification
Product Model：
YD-XT-40A

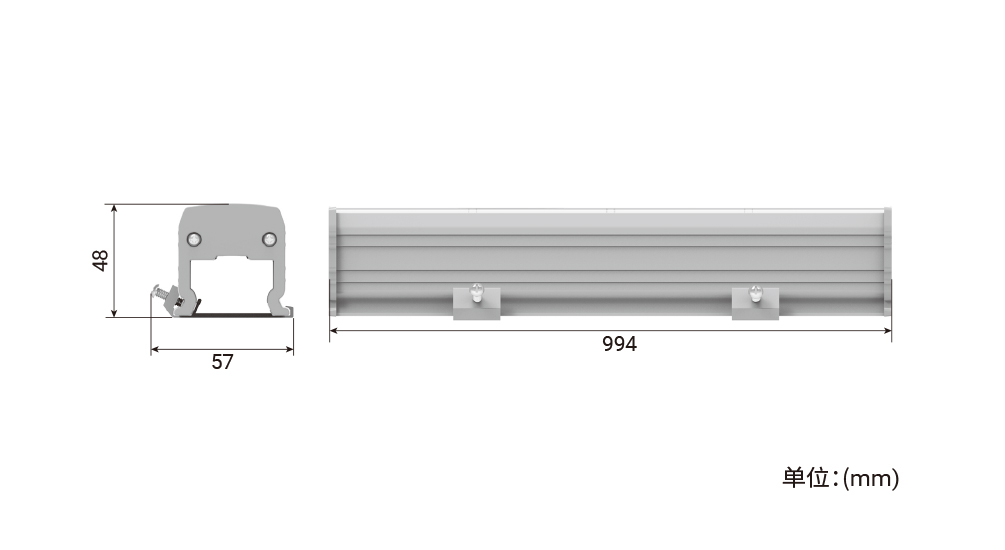

Size：
994×57×48(mm)
Beam Angle：
120°
Shell Material：
Aluminum Alloy
LED color：
B+W、RGB、RGB+W、R/G/B/W…
Weight：
1035g/set
Electrical
Voltage：
DC24V
Power：
12W、15W、18W、24W
Control Method：
ON/OFF、SPI、DMX512
Security
Protection Grade：
IP68
Outer Shell Fireproof Grade：
V-0
Ultraviolet Test：
Anti-UV
Salt Spray Test：
Anti-salt spray
Working Temperature：
-40℃~+55℃
Configuration
| Serial Number: | Serial Number： | Control Method： | Light Color： | Voltage： | Power： | Pixels quantity： | Control IC/m： |
| 01 | 1 | ON/OFF | R/G/B/W… | DC24V | 15W | 192pcs | / |
| 02 | 2 | SPI | R/G/B/W… | DC24V | 15W | 192pcs | 4 |
| 03 | 3 | SPI | RGB | DC24V | 18W | 72pcs | 4 |
| 04 | 4 | DMX512 | R/G/B/W… | DC24V | 12W | 144pcs | 4 |
| 05 | 5 | DMX512 | B+W | DC24V | 12W | 72+72pcs | 4 |
| 06 | 6 | DMX512 | RGB | DC24V | 18W | 72pcs | 4 |
| 07 | 7 | DMX512 | RGB+W | DC24V | 24W | 72+72pcs | 4 |

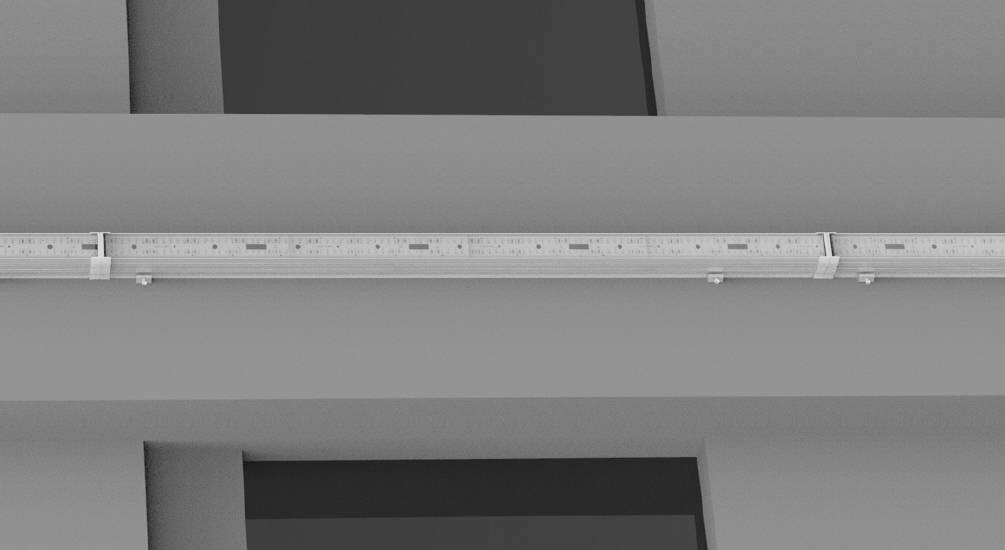

Installation
